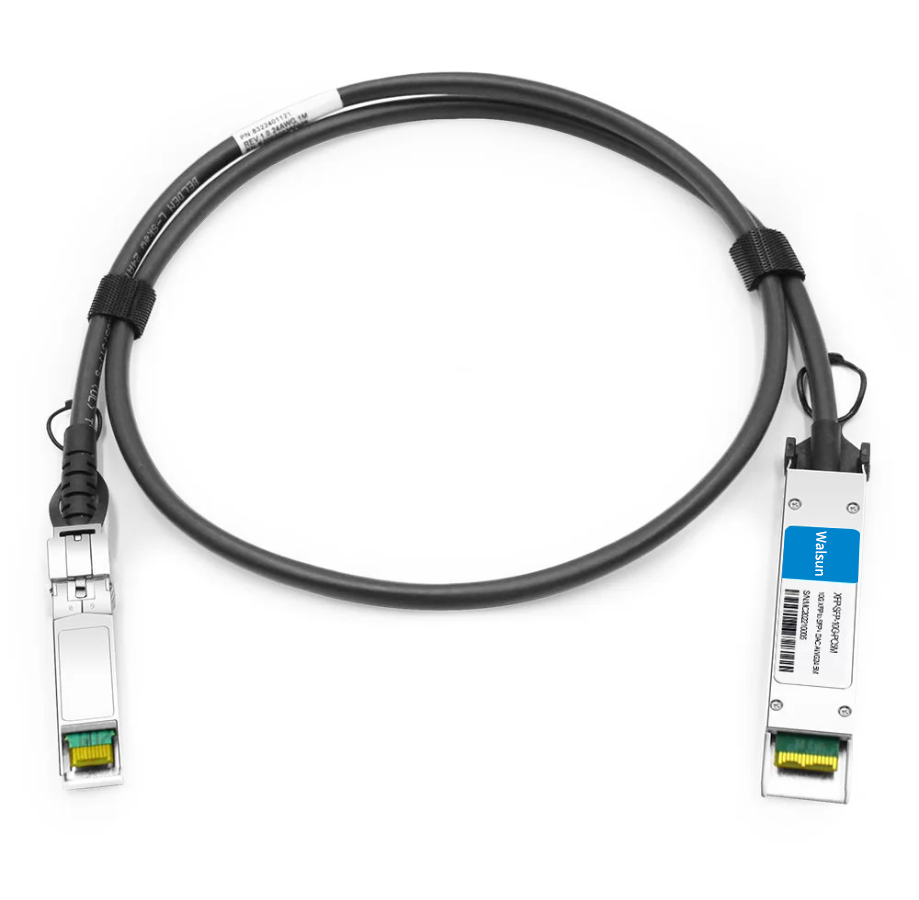

PC5M 5m (16ft) 10G XFP to SFP+ Passive Direct Attach Copper Cable
The DAC XFP to SFP+ cable assemblies is high-performance, cost-effective I/O solutions for 10Gb Ethernet and 10G Fibre Channel applications. XFP to SFP+ passive copper modules allow hardware manufacturers to achieve high port density, configurability, and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fibre Channel industry standards.
Category: 10G SFP+ to XFP DAC, DAC & AOC Cables, Direct Attach Cables
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | XFP-SFP-10G-PC5M | Vendor Name | Walsun |
| Connector | XFP to SFP+ | Max Data Rate | 10Gbps |
| Cable Length | 5m (16.4ft) | AWG | AWG 24 |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 31.5mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 1x InfiniBand QDR, DDR, SDR, 10G Ethernet, Fibre Channel |
