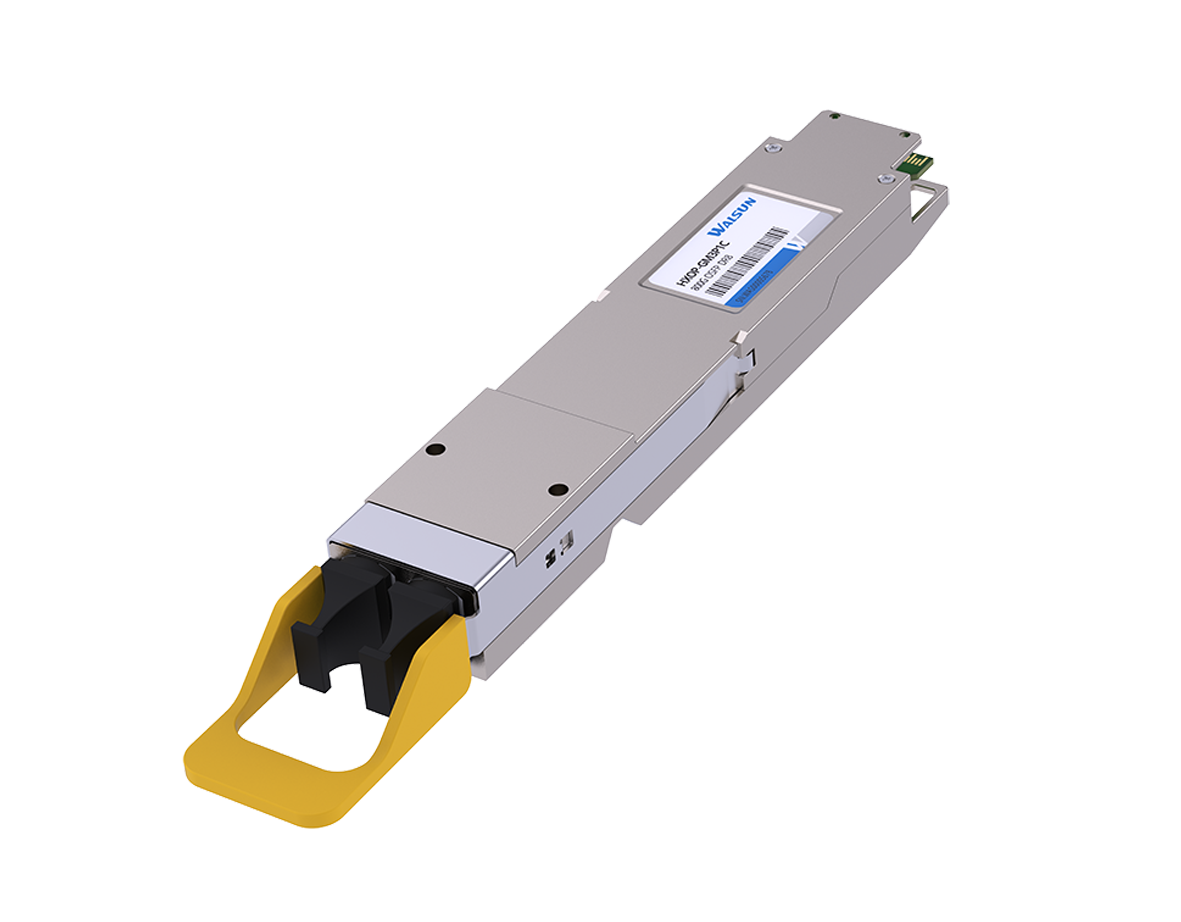

OSFP 800G 2xFR4

Supports 2x 425Gb/s or 850Gb/s
Single 3.3V Power Supply
OSFP MSA Compliant
8×106.25 Gb/s (PAM4) optical interface
8×106.25 Gb/s (PAM4) electrical interface
Commercial case temperature range of 0°C to 70°C
CMIS 5.0 or later version

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Walsun OSFP 800G transceivers are compliant to the latest releases of the OSFP MSA. Firmware supports CMIS 5.0 and newer release. We offer transceivers for VR8, DR8, 2xDR4, 2xFR4 and 2xLR4 interfaces. Our vertical integration for optical engines enables leading performance and power consumption.

Part Number	OSFP-800G-FR4	Vendor Name	Walsun
Form Factor	OSFP	Max Data Rate	850 Gbps (8x 106.25 Gbps)
Wavelength	1271nm, 1291nm, 1311nm and 1331nm	Distance	2km
Connector	Dual Duplex LC	Cable Type	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-3.2-4.4dBm	Receiver Sensitivity	< -7.2dBm
Power Consumption	≤16.5W	Modulation Format	PAM4
DDM	Yes	Temperature	0 to 70°C (32 to 158°F)
Protocols	IEEE 802.3cu-2021, IEEE P802.3ck D3.0, OSFP MSA HW Rev 4.1, CMIS Rev 5.0	Warranty	3 Years

Part Number	QSFP-DD-800G-DR8	OSFP-800G-FR4	QSFP-DD-800G-2FR4
Center Wavelength	1310nm	1271nm, 1291nm, 1311nm and 1331nm	1271nm, 1291nm, 1311nm and 1331nm
Connector	MTP/MPO-16 APC	Dual LC Duplex	Dual CS Duplex
Cable Distance (Max.)	500m	2km	2km
Modulation	8x 106.25G PAM4	8x 106.25G PAM4	8x 106.25G PAM4
Transmitter + Receiver Type	EML + PIN	EML + PIN	EML + PIN
TX Power	-2.9~4.0 dBM	-3.2~4.4 dBM	-3.2~4.4 dBM
Receiver Sensitivity	<-5.9 dBM	-7.2 dBM	-7.7 dBM
Power Consumption	≤16.5W	≤16.5W	≤18W
Temperature	0℃ to 70℃	0℃ to 70℃	0℃ to 70℃
Application	Ethernet Data Center 800G to 2x400G	Ethernet Data Center 800G to 2x400G	Ethernet Data Center 800G to 2x400G Breakout 800G to 8x100G Breakout

Ordering Information

Leave A Message

Description	Data Rate	Wavelength	Distance	Connector	Temp.
OSFP 8x100G DR	8x100G 800GbE	1310nm	500m	MPO-16	C
OSFP 8x100G DR	8x100G 800GbE	1310nm	500m	Dual MPO-12	C
OSFP 8x100G FR	8x100G 800GbE	1310nm	2km	MPO-16	C
OSFP 8x100G FR	8x100G 800GbE	1310nm	2km	Dual MPO-12	C
OSFP 8x100G LR	8x100G 800GbE	1310nm	10km	MPO-16	C
OSFP 8x100G LR	8x100G 800GbE	1310nm	10km	Dual MPO-12	C
OSFP 2x400G FR4	2x400GbE	CWDM	2km	Dual Duplex LC	C
OSFP 2x400G LR4	2x400GbE	CWDM	10km	Dual Duplex LC	C
OSFP 8x100G VR8	8x100G 800GbE	850nm	30m(OM3) 50m(OM4)	MPO-16	C
OSFP 8x100G VR8	8x100G 800GbE	850nm	30m(OM3) 50m(OM4)	Dual MPO-12	C

OSFP 800G 2xFR4
