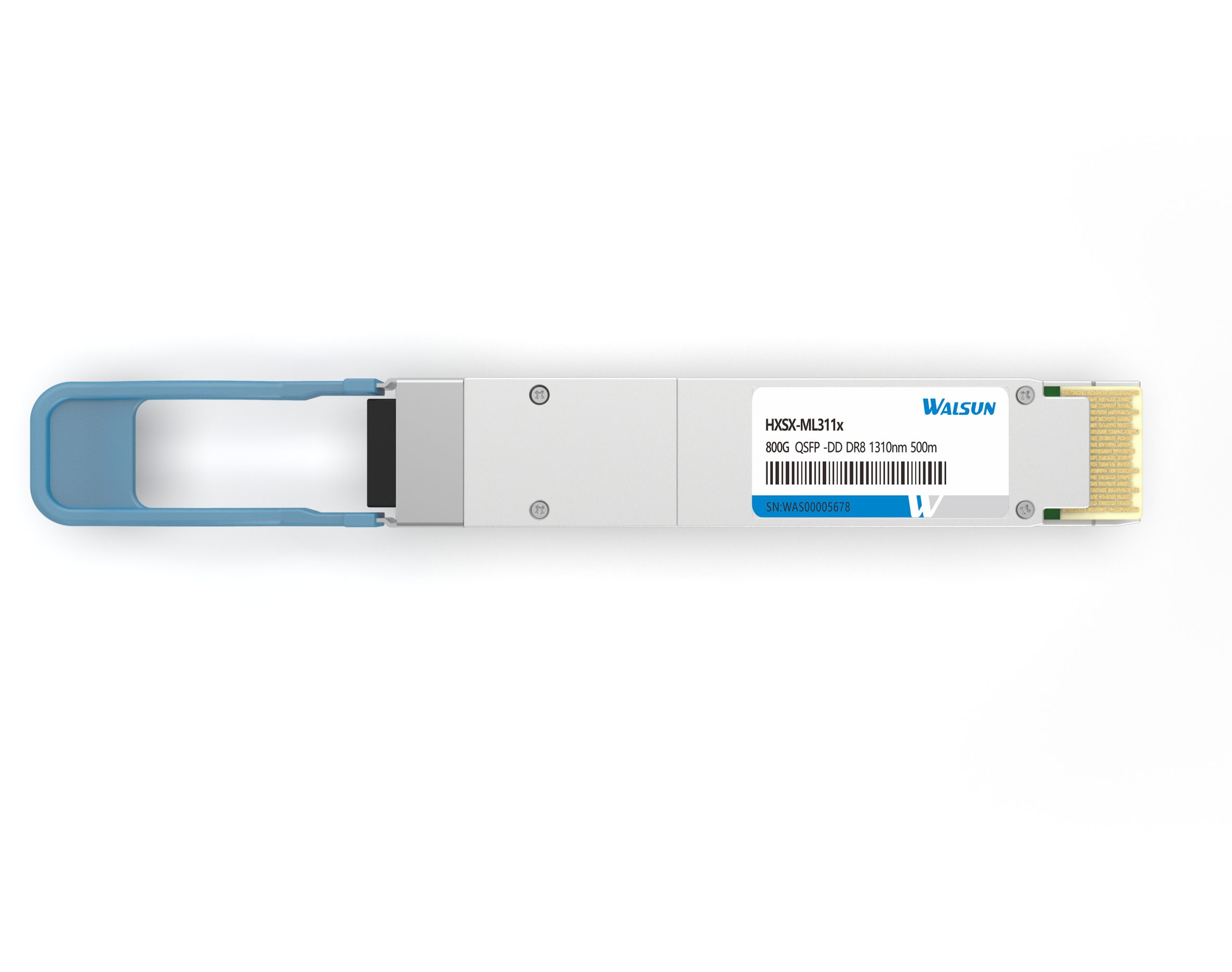

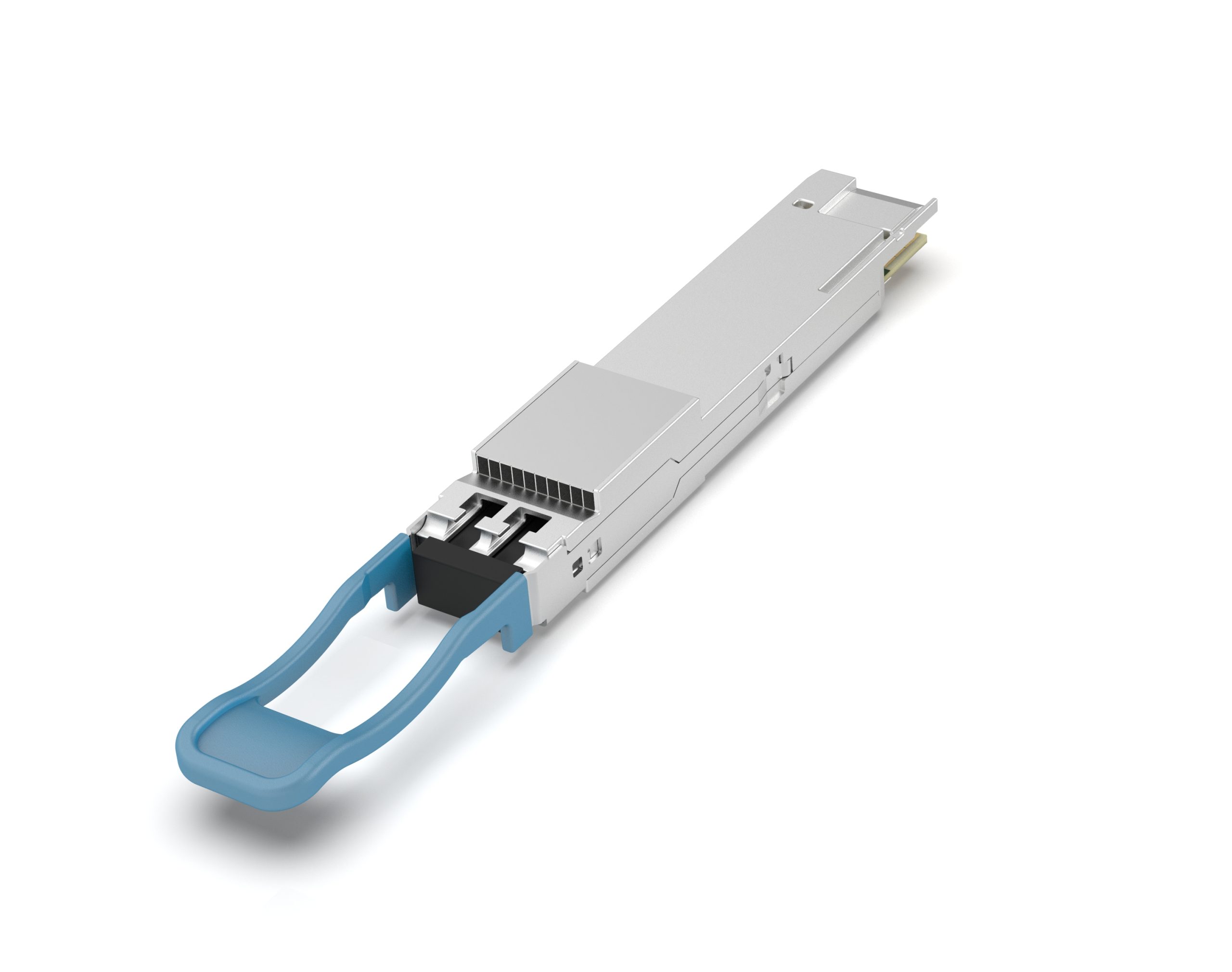

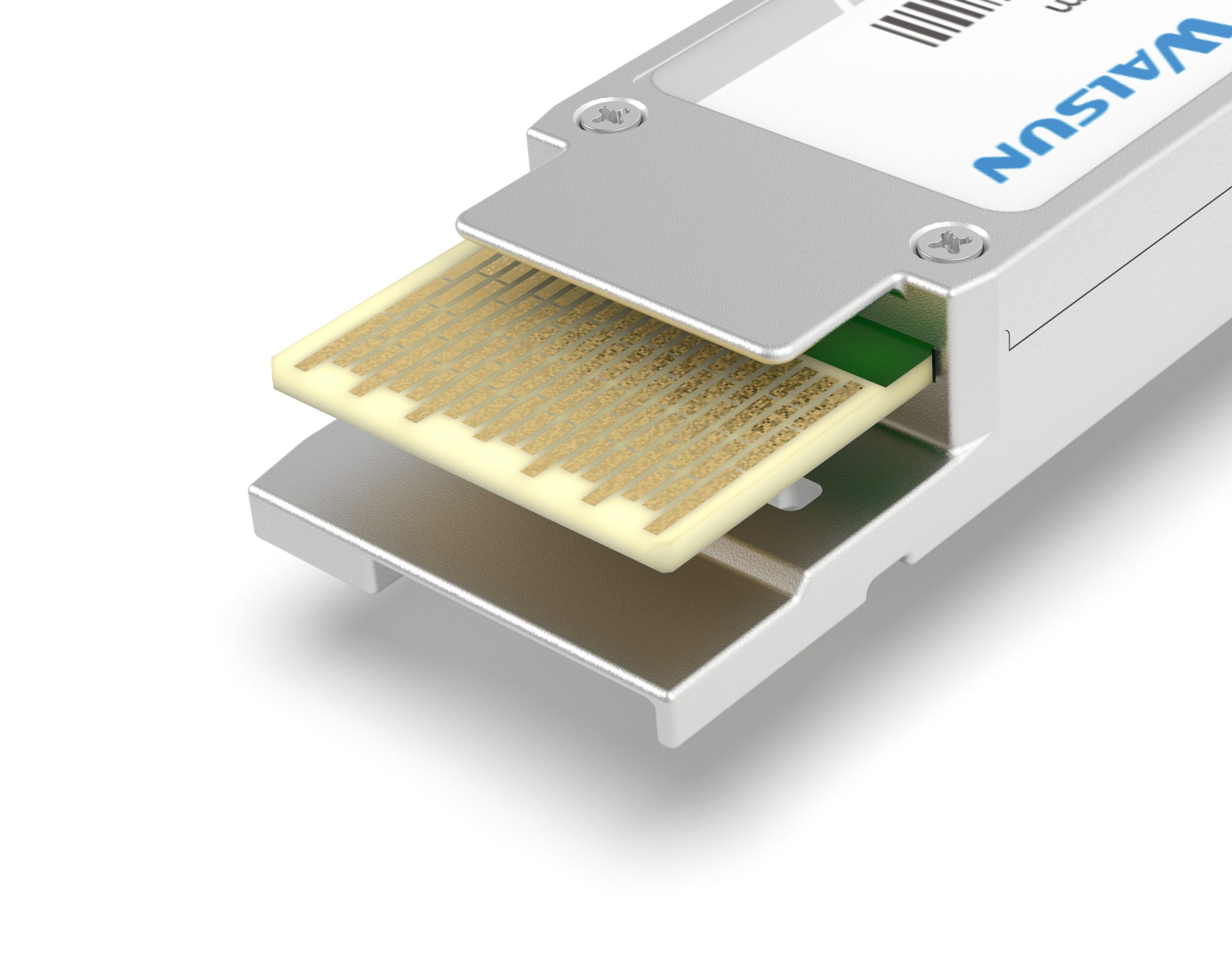

800G QSFP-DD DR8 1310nm 500m
- Adopts hot-pluggable QSFP-DD packaging
- Full-duplex transceiver module
- EML transmitter and PIN receiver
- Complies with IEEE 802.3bs, SFF-8636, SFF-8679, and QSFP-DD MSA Ethernet standards
- Maximum power consumption less than 10.5W
- Built-in digital diagnostic monitoring (DDM)
- Power supply voltage 3.3V
- Complies with RoHS environmental standards (lead-free)
- Class 1/1M product, meets IEC60825-1 requirements
- Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
- Meets EMI and ESD requirements
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | QSFP-DD-DR8 | Vendor Name | Walsun |
| Form Factor | QSFP-DD | Data Rate | 850Gbps |
| Wavelength | 1310nm | Distance | 500m |
| Connector | MTP/MPO-12 APC | Cable Type | SMF |
| Transmitter Type | EML | Detector Types | PIN |
| TX Power | -2.4~4dBm | Receiver Sensitivity | < -6.4dBm |
| Power Consumption | ≤10.5W | Operation Temperature | 0~70°C |
| DDM | Support | EMC | Support |
| Modulation | PAM4 | CDR | TX & RX with built-in CDR |
| Protocols | IEEE 802.3bs、SFF-8636、SFF-8679、 QSFP-DD MSA、CPRI, eCPRI | ||
Q: What 800G optical modules does Huaxun Optoelectronics offer?
A: Huaxun Optoelectronics offers the following 800G modules as listed in the table below:
| Product Model | Distance | Description | S/M |
|---|---|---|---|
| OSFP-SR8-800G | 50m | OSFP 800G SR8 multi-mode optical module PAM4 2x SR4 850nm 50m DOM Dual MPO-12/APC NDR, top heatsink | MMF |
| OSFP-DR8-800G | 500m | OSFP 800G DR8 single-mode optical module PAM4 2x DR4 1310nm 500m DOM Dual MPO-12/APC NDR, top heatsink | SMF |
| OSFP-2FR4-800G | 2km | OSFP 800G 2FR4 single-mode optical module PAM4 1310nm 2km DOM Dual LC duplex/UPC NDR, top heatsink | SMF |
Q: What types of 400G optical modules does Huasun Optical provide?
A: Huasun Optical supports a full range of 400G optical modules in OSFP and QSFP-DD packaging formats. The specific models and parameters are as follows:
400G Optical Modules
|
Model Name
|
Max Transmission Distance
|
Connector Type
|
Fiber Type
|
Power Consumption
|
|---|---|---|---|---|
|
70m@OM3/100m@OM4
|
MTP/MPO-16 (APC)
|
Multimode
|
≤10W
|
|
|
500m
|
MTP/MPO-12 (APC)
|
Single-mode
|
≤10W
|
|
|
40km
|
MTP/MPO-12
|
Single-mode
|
≤12W
|
|
|
2km
|
LC Duplex
|
Single-mode
|
≤12W
|
|
|
10km
|
LC Duplex
|
Single-mode
|
≤12W
|
|
|
500m
|
MTP/MPO-12
|
Single-mode
|
≤10W
|
|
|
10km
|
LC Duplex
|
Single-mode
|
≤14W
|
|
|
50m
|
LC Duplex
|
Single-mode
|
≤14W
|
400G DAC/AOC High-Speed Cables
|
Product Type
|
Max Transmission Distance
|
Connector Type
|
Power Consumption
|
|---|---|---|---|
|
400G QSFP-DD DAC/AOC Direct Attach Cable
|
100m
|
QSFP-DD
|
≤11W
|
|
400G DAC/AOC Breakout Cable
|
50m
|
QSFP-DD – 2x QSFP56, QSFP-DD – 4x QSFP56, QSFP-DD – 4x QSFP28, QSFP-DD – 8x SFP56
|
≤11W
|
Q: Can OSFP optical modules be inserted into QSFP-DD ports? Can QSFP-DD be inserted into OSFP ports?
A: No, OSFP and QSFP-DD are two physically different form factors. OSFP systems require OSFP optical modules and cables, while QSFP-DD systems require QSFP-DD optical modules and cables.
Q: How many electrical channels does an 800G optical module use?
A: An 800G optical module uses 8 electrical channels for data transmission, each channel comprising one receive channel and one transmit channel.
Q: What are the rate and modulation format used in 800G OSFP/QSFP-DD modules?
A: As mentioned earlier, all 800G optical modules use 8 electrical channels for bi-directional transmission. Each channel operates at a data rate of 100Gb/s, resulting in a total bandwidth of 800Gb/s for the module. Additionally, FS 800G optical modules utilize 8 optical wavelengths, with each channel employing 100G PAM4 modulation.
Q: What is the significance of using PAM4 modulation technology for digital signal transmission in 800G optical modules?
A: Adopting PAM4 modulation in 800G optical modules enhances network performance and increases data rates. Compared to traditional NRZ modulation used in lower-speed optical modules, PAM4 allows each signal to transmit twice the amount of data. This capability enables 800G optical modules to achieve data rates of up to 800Gbps on a single optical channel. By leveraging PAM4 modulation, 800G optical modules can transmit more data while utilizing the same channel bandwidth, making them ideal for applications such as data centers and cloud computing.
| Product Number | Data Rate (Gb/s) |
Wavelength (nm) |
Reach (km) |
LD | Tx Power (dBm) |
PD | Rx Sens (dBm) |
Temperature (℃) |
Download |
| HXOP-GM3P1C | 800 | 1310 | 0.5 | EML | -2.9~4.0 | PIN | < -5.9 | 0~70 | |
| HXOP-GM1R1C | 800 | 850 | 0.1 | VCEML | -4.6~4 | APD | < -6.4 | 0~70 |
