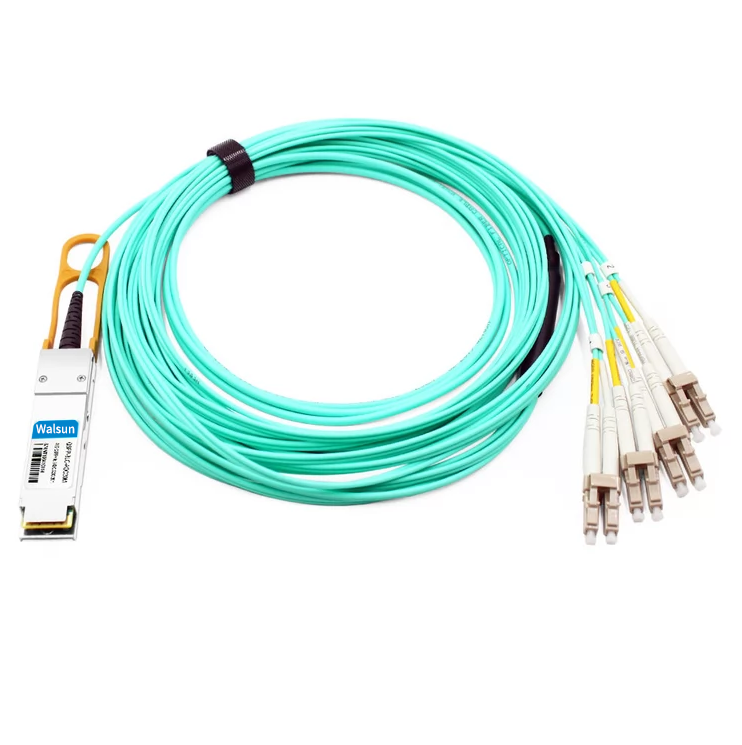

40G QSFP+ to 8 LC Connector Active Optical Breakout Cable

The 40G QSFP+ Breakout ActiveOptical Cable (AOC) to 4× double LC connect Cable break-out solution. This Breakout cable is intended for 40G to 4× 10G applications. This AOC is a high-performance cable for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backward compatible with the 4 ×5GIBDDR and 4 × 2.5G IB single IB SDR applications.

Category： , ,

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Get a Quote
Contact Us
Product Number QSFP-8LC-AOC30M Vendor Name Walsun
Connector QSFP+ to 4 Double LC Max Data Rate 40Gbps
Cable Length 30m (98.4ft) Fiber Cable OM3 MMF
Jacket Material OFNP Minimum Bend Radius 7.5mm
Operation Temperature 0~ 70 °C (32 to 158°F) Protocols 40G InfiniBand 8x DDR, 4x QDR, 10/40 Gigabit Ethernet, Fibre Channel
