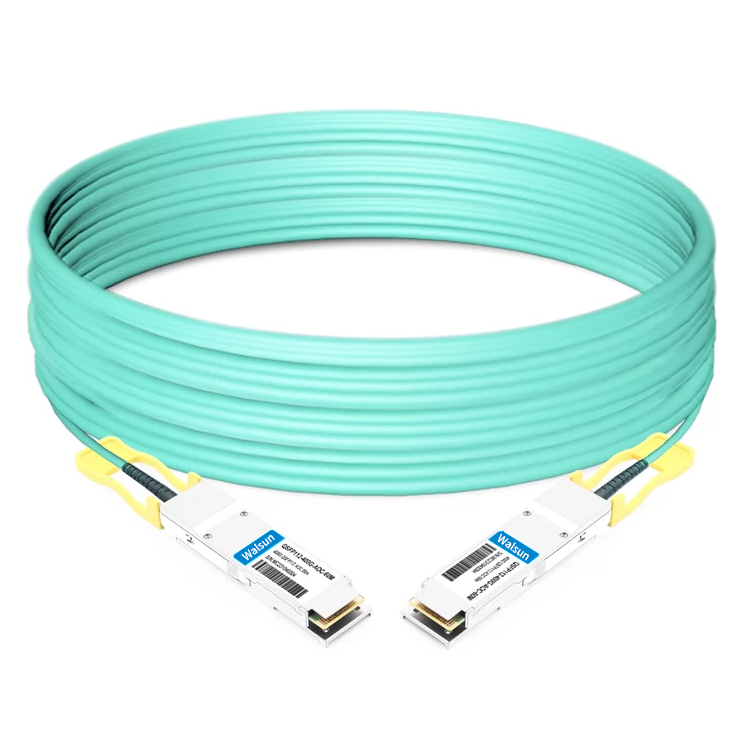

400G QSFP112 to QSFP112 Active Optical Cable
QSFP112-400G-AOC-xxM is a QSFP112 to QSFP112 active optical cable for short-range data communication and interconnect applications. Each AOC has 4 duplex channels with 425Gbit/s aggregate bandwidth. Each channel operates with a PAM4 modulation scheme at 53.125G baud rate, and up to 60m using OM3 fiber or 100m using OM4 fiber.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP-DD-400G-AOC-60M | Vendor Name | Walsun |
| Form Factor | QSFP112 | Max Data Rate | 425Gb/s |
| Wavelength | 850nm | Cable Length | 60m (197ft) |
| Modulation Format | PAM4 | Host Required | FEC |
| Number of Lanes | 8 TX and 8 RX (50G) | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | <8.0W Each End |
| Protocols | QSFP112 MSA Rev2.1.1 and IEEE 802.3db, IEEE 802.3ck | Application | 400G Ethernet and 200G Ethernet |
