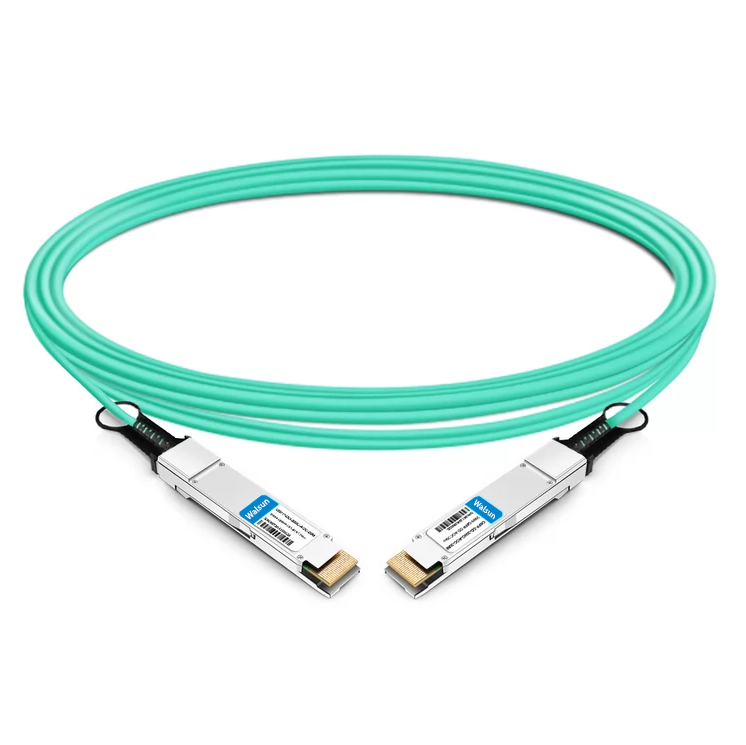

400G QSFP-DD to QSFP-DD Active Optical Cable
400G QSFP-DD AOC (Active Optical Cable) assemblies are designed to support 400G Ethernet. 400G QSFP-DD AOC components are compatible with IEEE 802.3cd 400GBASE-SR8 and IEEE 802.3cd 200GBASE-SR4. The module supports eight electrical interface lanes that operate in 50G PAM4 encoding mode, enabling 400G (8x50G) data rates. The 400GBASE-SR8 QSFP-DD AOC assembly is used to connect multiple 400G signals from the server side (NIC) to the data center aggregation switch.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP-DD-400G-AOC-50M | Vendor Name | Walsun |
| Form Factor | QSFP-DD | Max Data Rate | 425Gb/s |
| Wavelength | 850nm | Cable Length | 50m (164.04ft) |
| Modulation Format | DSP/PAM4 | Host Required | FEC |
| Number of Lanes | 8 TX and 8 RX (50G) | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | <10.0W Each End |
| Protocols | QSFP-DD Rev 4.0 and IEEE 802.3bs, SFF-8679, CMIS3.0 | Application | Ethernet for 400GBASE-SR8 |
