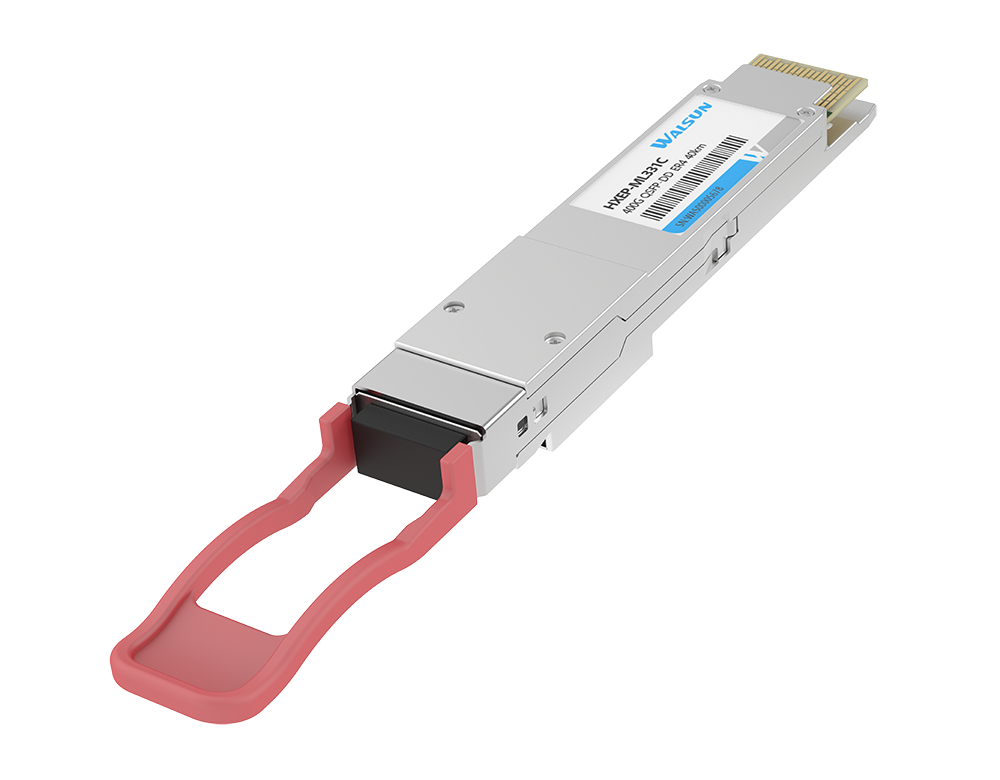

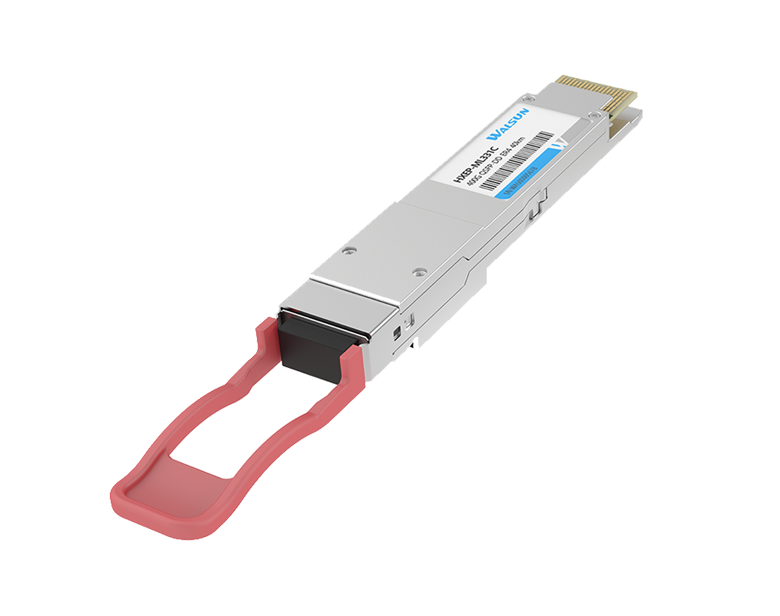

400G QSFP-DD ER4 30km

  • Utilizes non-hermetic, hot-pluggable QSFP-DD packaging
  • Features 56GB non-cooled EML lasers with 16nm DSP
  • Supports single-mode fiber data transmission up to 500m and KPA FEC host
  • Each channel supports 106.25Gb/s (PAM4) data transmission
  • Compliant with IEEE 802.3bs and QSFP-DD MSA standards
  • Supports Received Signal Strength Indication (RSSI) and Transmitter Output Power Monitoring (TOPM)
  • Integrated with optical Multiplexer (Mux) and Demultiplexer (De-Mux) using LC connectors
Category： ,

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Get a Quote
Contact Us
Product Model 400G QSFP-DD ER4 Vendor Name Walsun
Form Factor QSFP-DD Data Rate 400.05Gbps
Wavelength 1310nm Distance 30km
Connector LC Duplex Cable Type SMF
Transmitter Type EML Detector Types PIN
TX Power -4.2~4.7dBm Receiver Sensitivity < -6dBm（BER of 2.4E-4）
Power Consumption ≤5W Operation Temperature 0~70°C
DDM Support EMC Support
Modulation PAM4 CDR TX & RX with built-in CDR
Protocols IEEE 802.3bs、SFF-8661、SFF-8636, QSFP56 MSA、CPRI, eCPRI

Q: What are the common types of 400G QSFP-DD optical modules available on the market?

A: Common types of 400G QSFP-DD optical modules in the market include QSFP-DD SR8, QSFP-DD DR4, QSFP-DD FR4, QSFP-DD FR8, QSFP-DD LR4, QSFP-DD LR8, and QSFP-DD ER8 optical modules.

Q: What are the advantages of using 400G?

A: Higher transmission density per RU: From single-port speeds of 100G to 400G, the transmission bandwidth per RU increases from 3.2-3.6T to 12.8-14.4T.

Greater server connection density: Supports connections from 400G to 4x100G.

Reduced wiring complexity: With the same bandwidth, wiring requirements are only 1/4 compared to 100G.

Lower power consumption: One 400G module consumes less power than four 100G modules, reducing operational costs.

Q: What interface types do 400G modules support?

A: Duplex LC interface, similar to 100G-CWDM4, 40G-LR4 modules. LR4, ER4, ER8 modules use duplex LC interfaces.

MPO12 interface (APC), similar to 100G-SR4, 100G-PSM4 modules. 400G-DR4, XDR4, PLR4 modules use MPO12 interfaces.

MPO16 interface (APC), 400G-FR4/400G-SR8 modules use eight fibers for transmission and eight fibers for reception, totaling 16 fibers for 400G transmission.

Q: Can you use an OSFP optical module on one end of a 400G link and a QSFP-DD optical module on the other end?

A: Yes. OSFP and QSFP-DD describe the physical size of the optical modules. As long as the protocol standards are the same (i.e., both ends of the link are using 400G-LR4 or 400G-FR4, etc.), OSFP and QSFP-DD optical modules can be mutually compatible.
