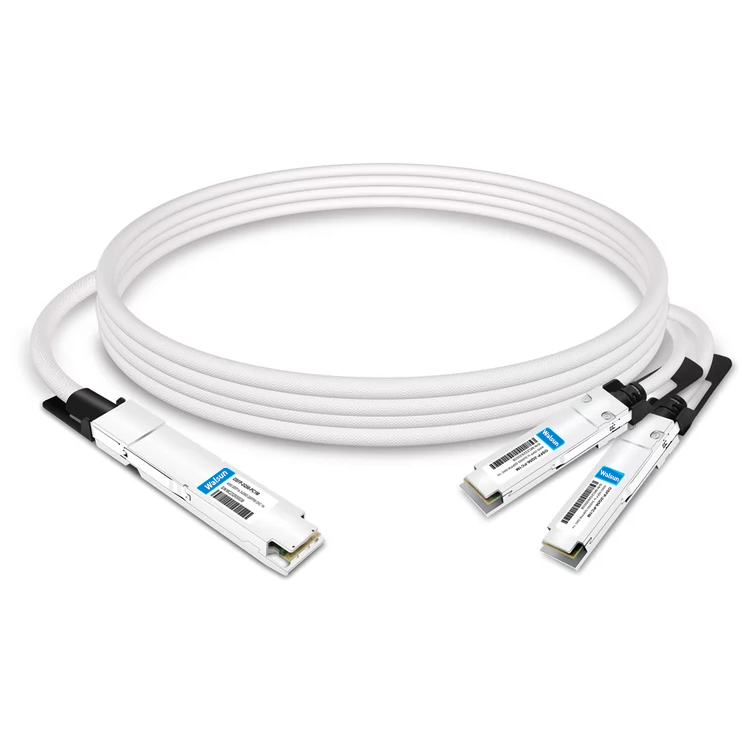

400G OSFP to 2x200G QSFP56 Passive Breakout Direct Attach Cable
400G OSFP to 2x200G QSFP56 Breakout Direct Attach Copper Cable (OSFP to QSFP56 DAC Breakout Cable, 30AWG, Passive 1m)
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | OSFP-2Q56-PC1M | Vendor Name | Walsun |
| Connector | OSFP to 2x QSFP56 | Max Data Rate | 400Gb/s to 2 x 200Gb/s |
| Wire Gages | AWG 30 | Cable Length | 1m (3ft) |
| Jacket Material | Hair Tail Technology Net | Minimum Bend Radius | 35mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Modulation Format | PAM4 |
| Protocols | SFF-8636 | Application | 400G InfiniBand NDR |
Ordering Information
Ordering Information
Leave A Message
相关产品
-

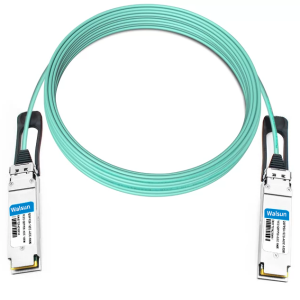

DAC & AOC Cables200G QSFP-DD to QSFP-DD Active Optical Cable
-
DAC & AOC Cables100G QSFP28 to QSFP28 Active Optical Cable
-

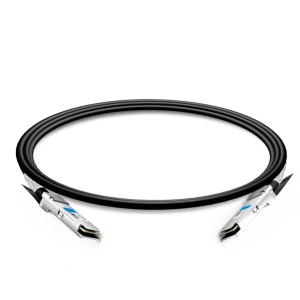

DAC & AOC Cables200G QSFP56 to QSFP56 PAM4 Passive Direct Attach Copper Twinax Cable
-

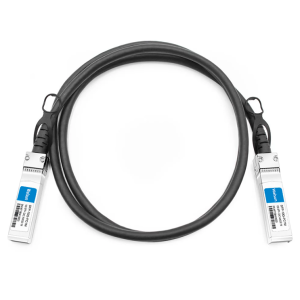

DAC & AOC Cables10G SFP+ to SFP+ Passive Direct Attach Copper Cable
