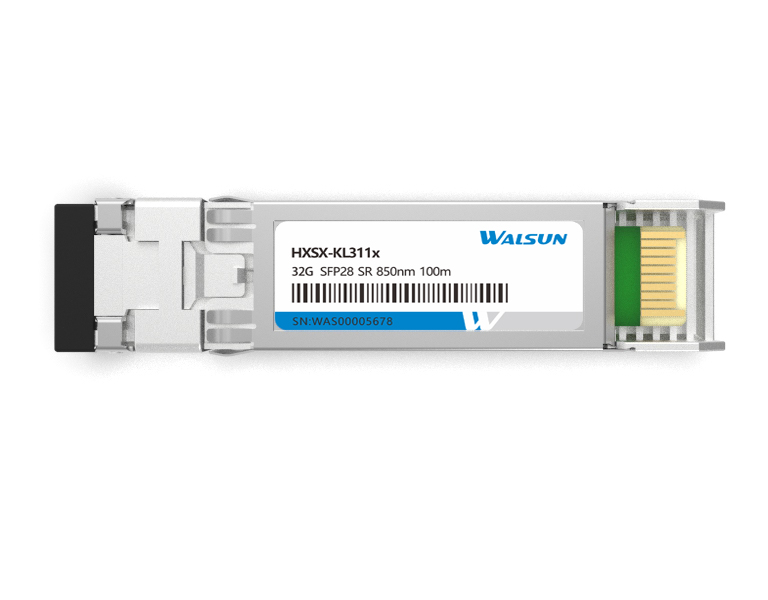

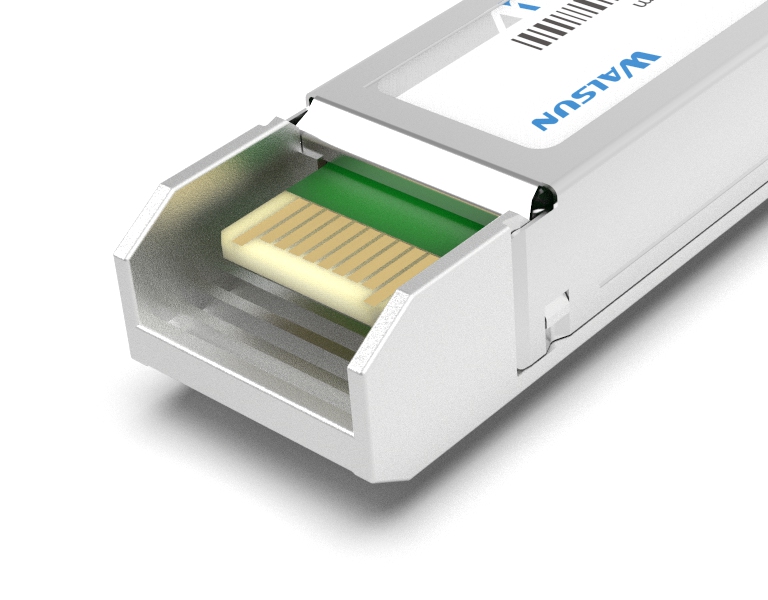

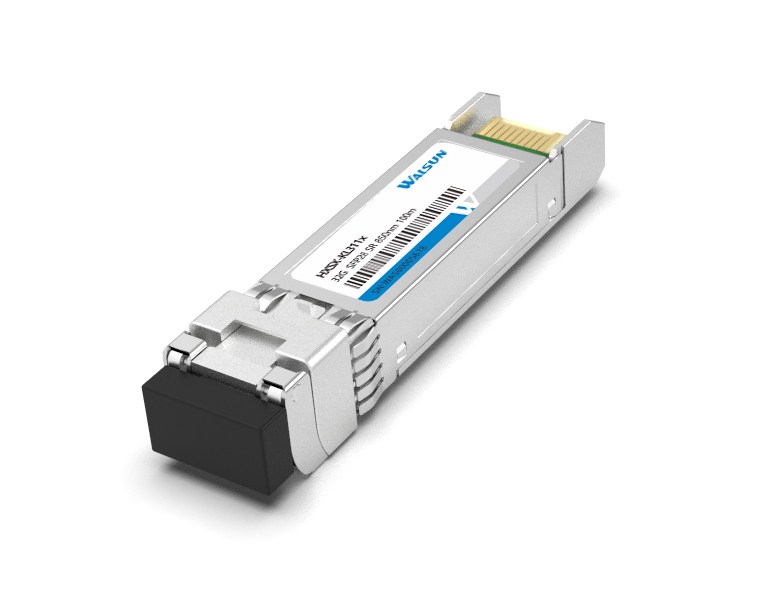

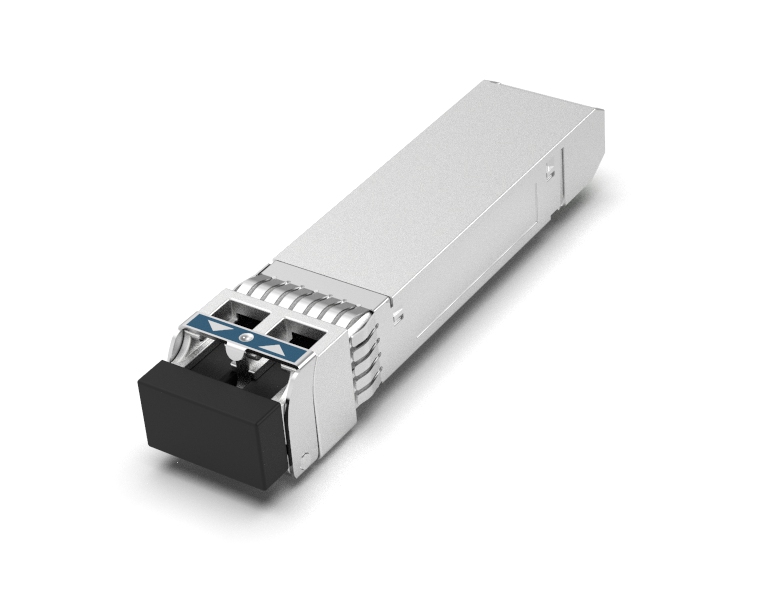

32G SFP28 850nm SR
- Supports up to 28.05Gbps bit rates
- Hot-pluggable SFP+ footprint
- 850nm VCSEL laser and PIN photodiode
- Up to 70m for OM3-MMF and 100m for OM4-MMF transmission
- Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
- Compatible with RoHS
- Single +3.3V power supply
- Real-Time Digital Diagnostic Monitoring
- 16GFC/32GFC Fibre channel
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | SFP28-32G85-SW | Vendor Name | Walsun |
| Form Factor | SFP28 | Max Data Rate | 28.05Gbps |
| Wavelength | 850nm | Max Distance | 70m over OM3 / 100m over OM4 |
| Connector | Duplex LC | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8.4~+2.4dBm | Receiver Sensitivity | < -10.0dBm |
| Protocols | MSA Compliant, SFF-8472 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Ordering Information
Ordering Information
| Product Number | Data Rate (Gb/s) |
Wavelength (nm) |
Reach (Km) |
LD | Tx Power (dBm) |
PD | Rx Sens (dBm) |
Temperature (℃) |
Download |
| SFP28 LR | 28.05 | 1310 | 10 | DFB | -7~2 | PIN | <-11.6 | -40~85 |  |
| SFP28 SR | 28.05 | 850 | 100m | DFB | -7~2 | PIN | <-11.6 | -40~85 | |
