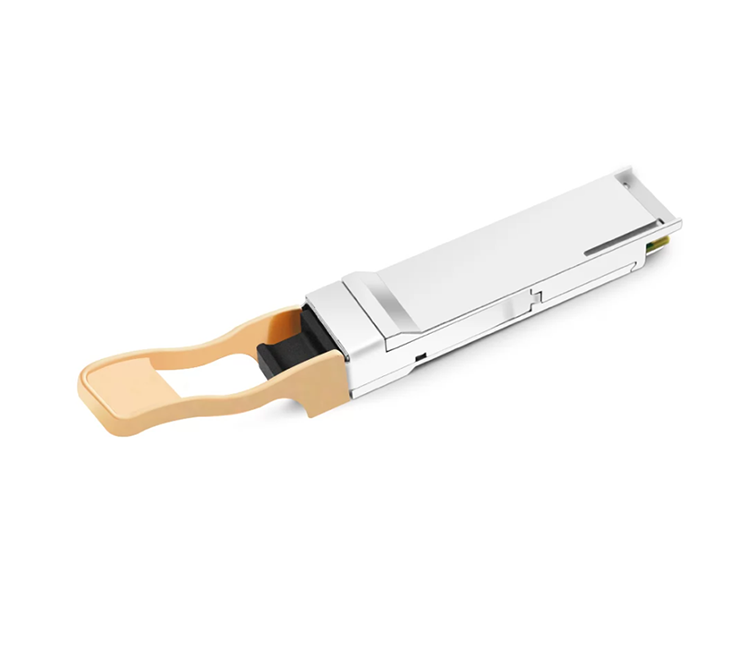

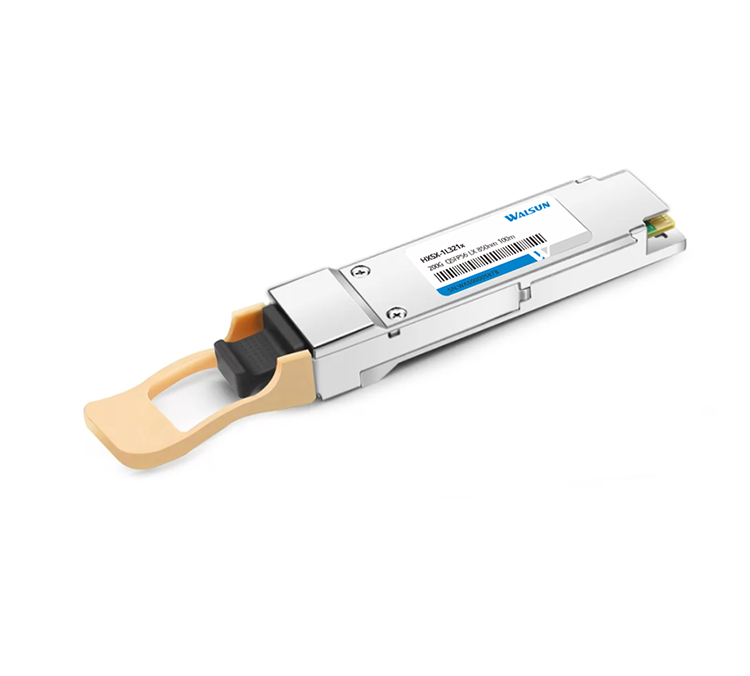

200G QSFP56 SR4 PAM4 850nm 100m
- Compliant with 200G-SR4 optical specifications
- 4×53.125Gb/s electrical interface (200GAUI-4)
- Reach up to 70m on MMF(OM3)
- Reach up to 100m on MMF(OM4)
- Single +3.3V power supply
- Case temperature range: 0 ~ +70℃
- Maximum power consumption 4W
- Single MPO12 connector
- RoHS complaint
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | QSFP56-200G-SR4M | Vendor Name | Walsun |
| Form Factor | QSFP56 | Max Data Rate | 212.5Gbps |
| Wavelength | 850nm | Max Distance | 70m on OM3/100m on OM4 |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| TX Power | -6.5~+4.0dBm | Receiver Sensitivity | < -8.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 5W |
| Protocols | QSFP56 MSA, IEEE 802.3bs | Application | 200G InfiniBand HDR,200G Ethernet Data Center Interconnect |
