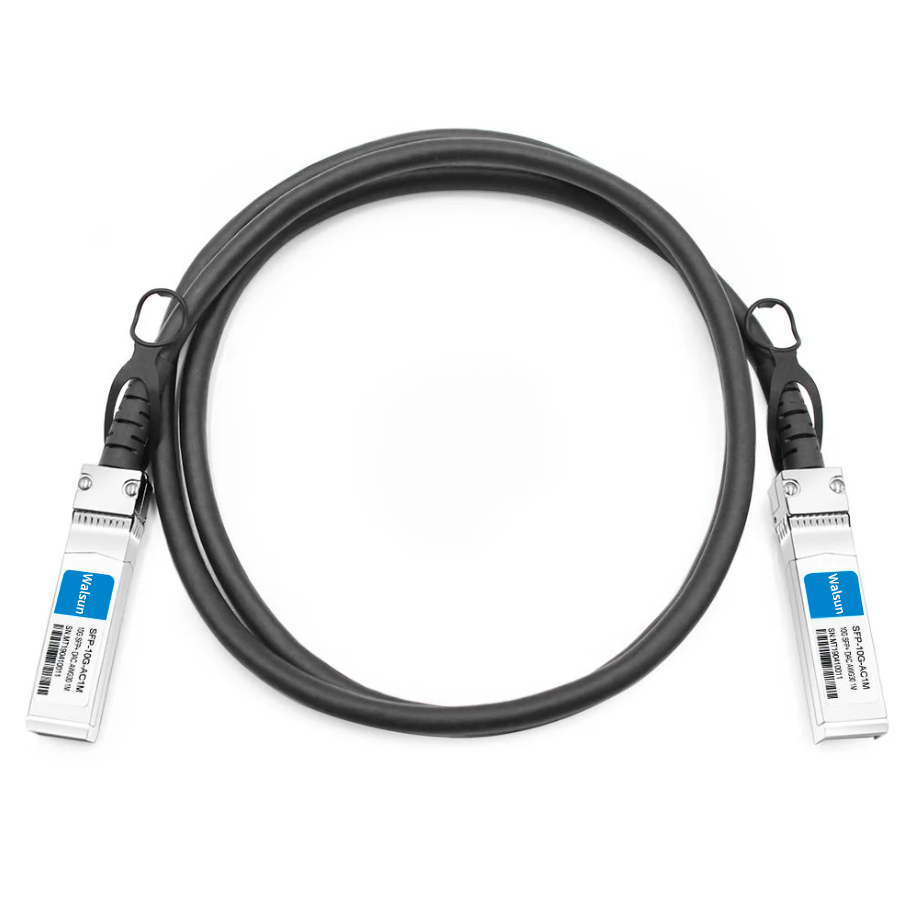

10G SFP+ to SFP+ Active Direct Attach Copper Cable
The SFP+ Active Copper Cable assemblies are high-performance, cost-effective I/O solutions for 10Gb Ethernet and 10G Fibre Channel applications. SFP+ Active copper modules allow hardware manufacturers to achieve high port density, configurability, and utilization at a meager cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fibre Channel industry standards.
Category: 10G SFP+ DAC, DAC & AOC Cables, Direct Attach Cables
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | SFP-10G-AC1M | Vendor Name | Walsun |
| Connector | SFP+ to SFP+ | Max Data Rate | 10Gbps |
| Cable Length | 1m (3.3ft) | AWG | AWG 30 |
| Jacket Material | PVC(OFNR) | Minimum Bend Radius | 20mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 1x InfiniBand QDR, DDR, SDR, 10G Ethernet, Fibre Channel |
Ordering Information
Ordering Information
Leave A Message
相关产品
-
DAC & AOC Cables

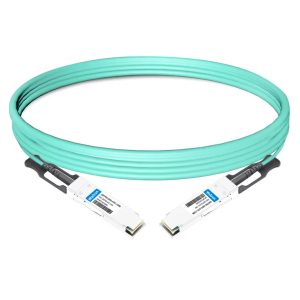

200G QSFP56 to QSFP56 Active Optical Cable
-
