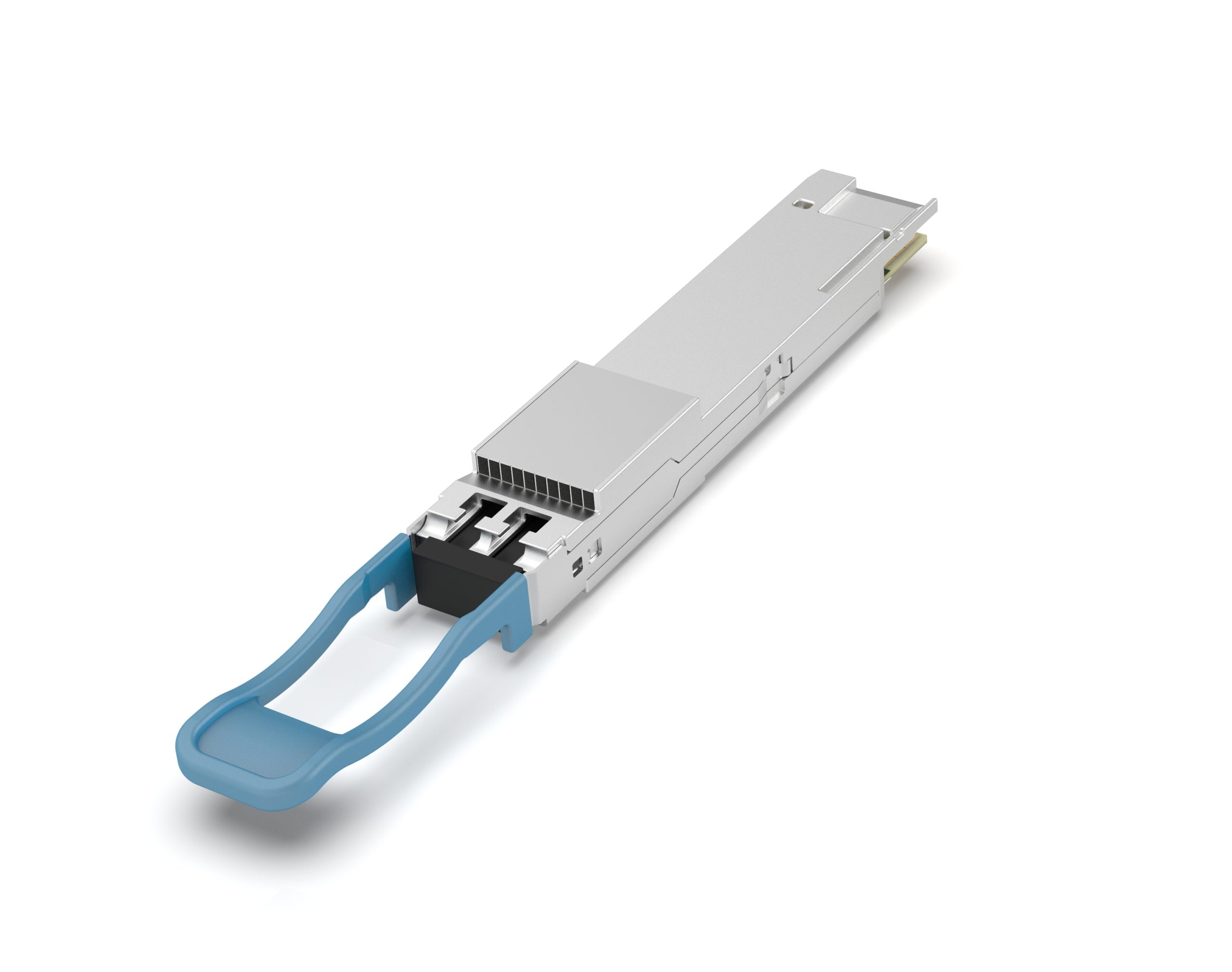

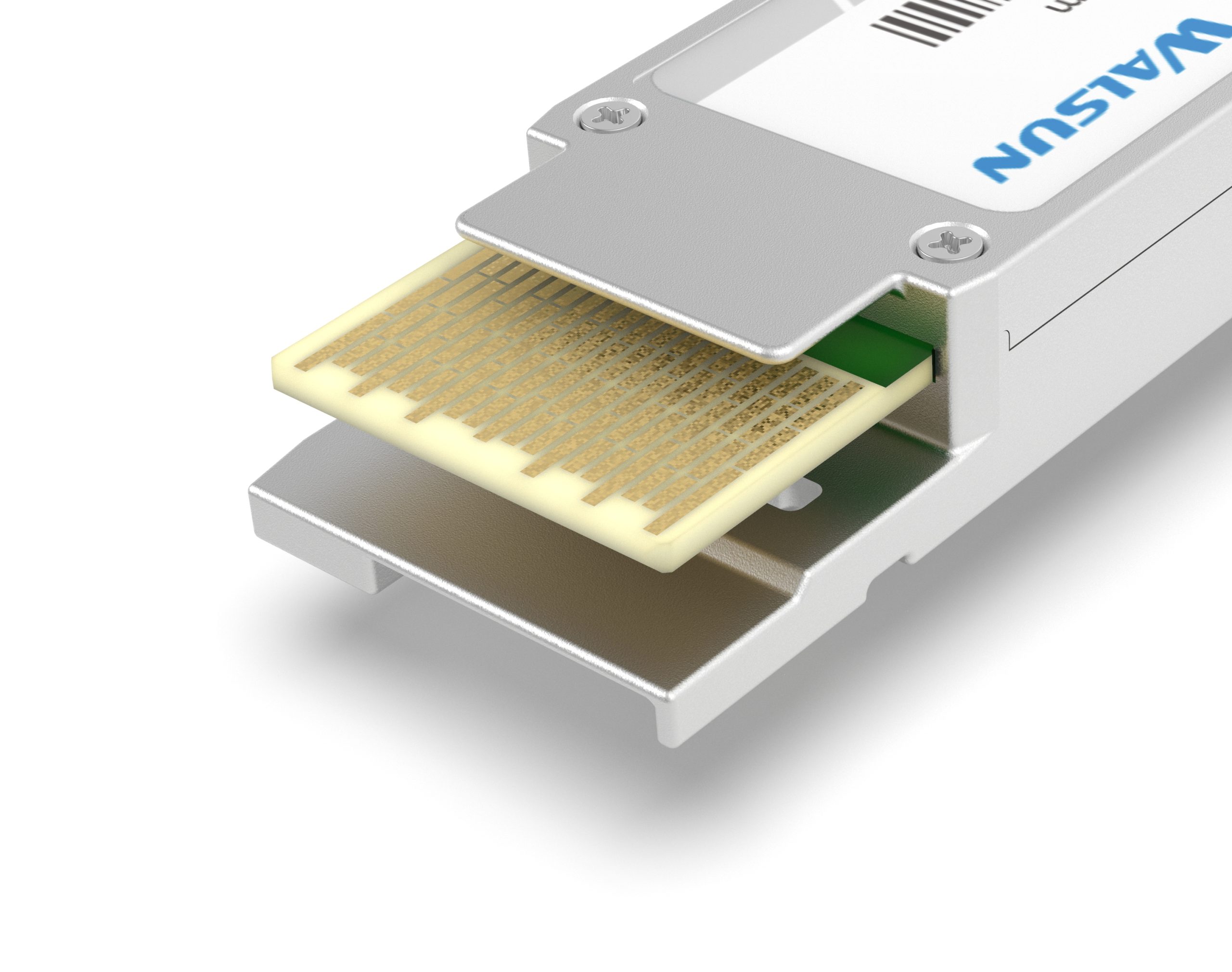

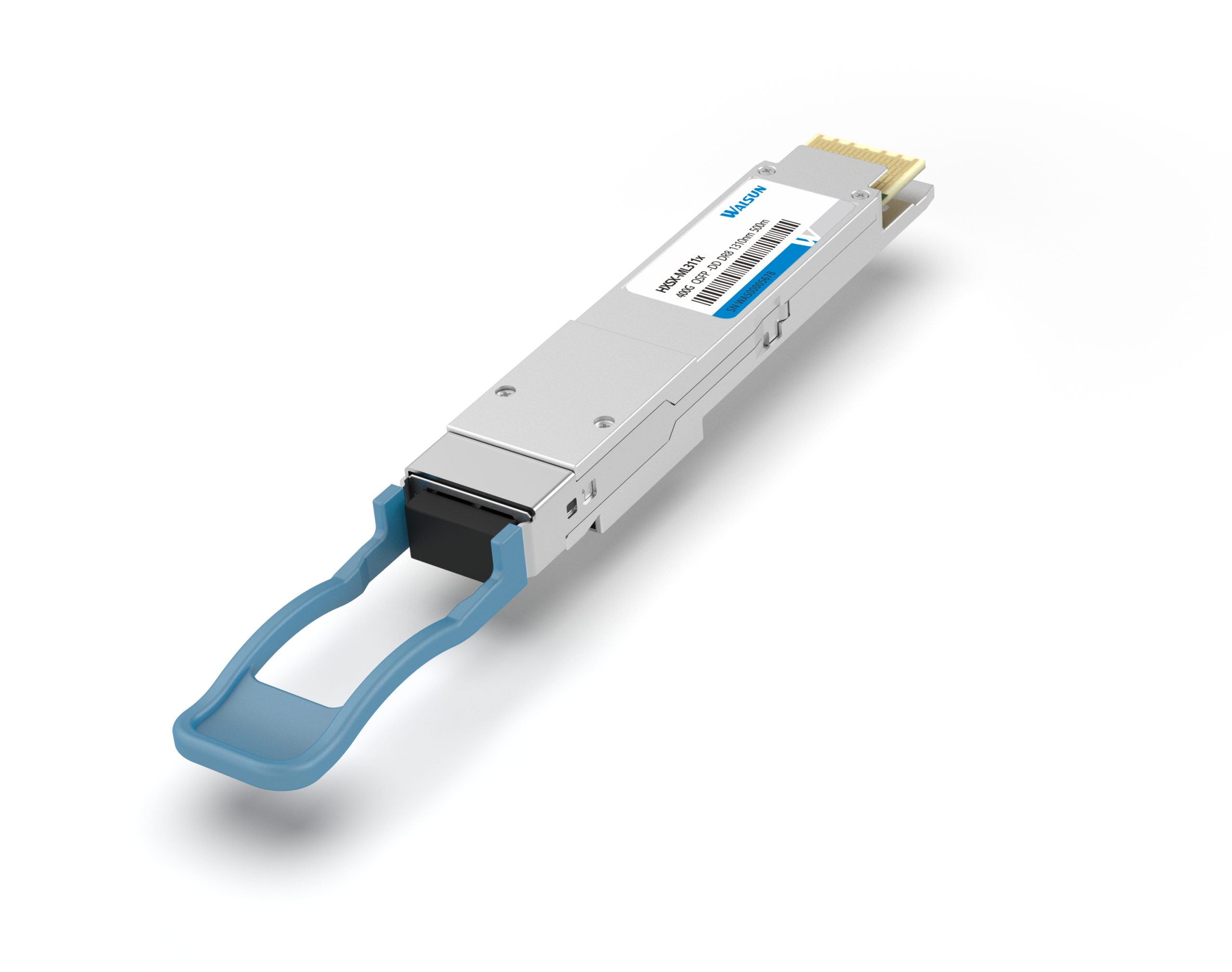

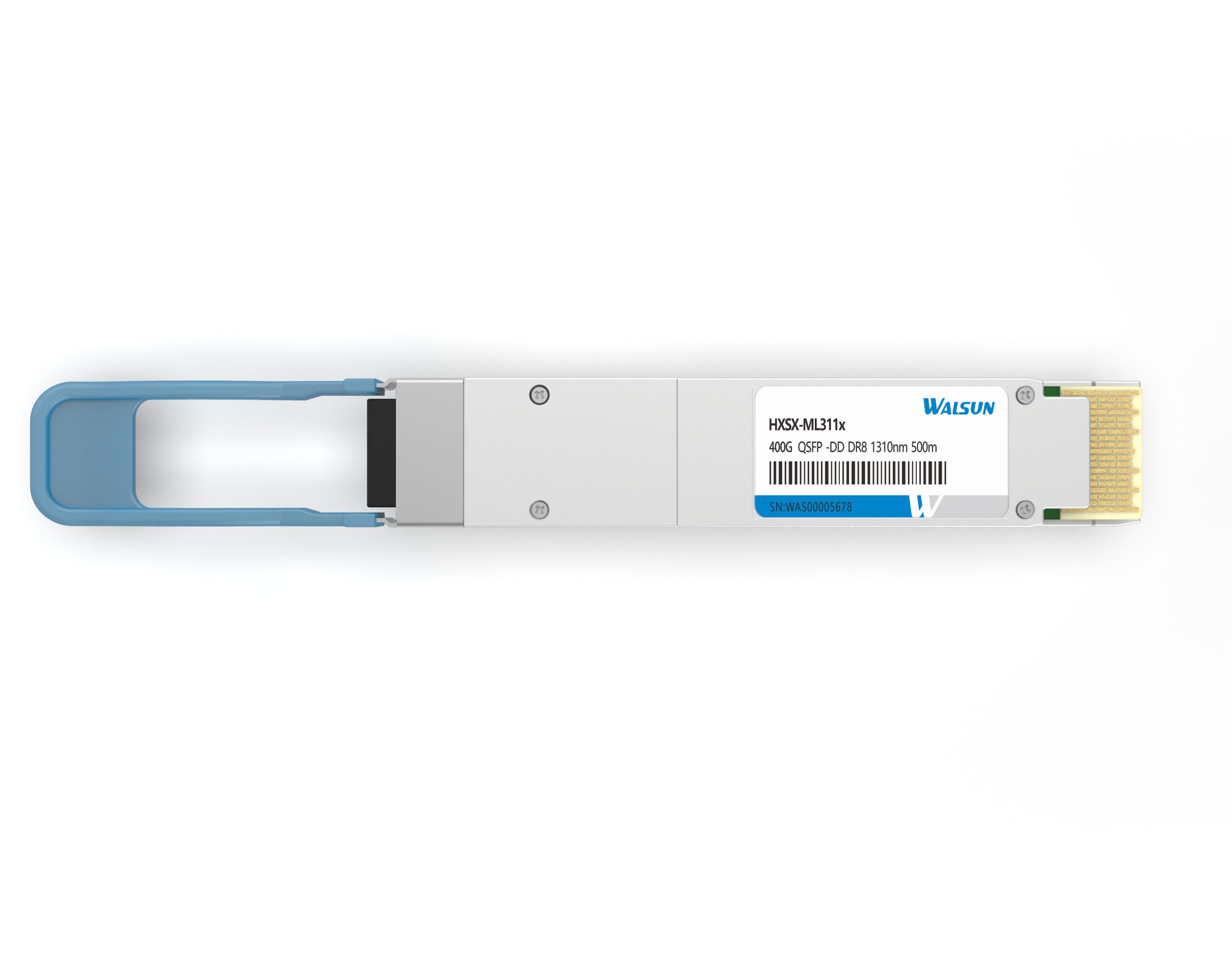

400G QSFP-DD DR8 1310nm 500m

  • Adopts hot-pluggable QSFP-DD packaging
  • Full-duplex transceiver module
  • 850nm VCSEL transmitter and PIN receiver
  • Complies with IEEE 802.3bs, SFF-8636, SFF-8679, and QSFP-DD MSA Ethernet standards
  • Maximum power consumption less than 10W
  • Built-in digital diagnostic monitoring (DDM)
  • Power supply voltage 3.3V
  • Complies with RoHS environmental standards (lead-free)
  • Class 1/1M product, meets IEC60825-1 requirements
  • Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
  • Meets EMI and ESD requirements
Category： ,

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Get a Quote
Contact Us
Product Model QDD-400G-DR8 Vendor Name Walsun
Form Factor QSFP-DD Data Rate 425Gbps
Wavelength 1310nm Distance 500m
Connector MPO/MTP-16 APC Cable Type MMF
Transmitter Type VCSEL Detector Types PIN
TX Power -6.5~4dBm Receiver Sensitivity < -7.9dBm
Power Consumption ≤10W Operation Temperature 0~70°C
DDM Support EMC Support
Modulation PAM4 CDR TX & RX with built-in CDR
Protocols IEEE 802.3bs、SFF-8636、SFF-8679、 QSFP-DD MSA、CPRI, eCPRI

Q: What types of 400G optical modules does Huasun Optical provide?

A: Huasun Optical supports a full range of 400G optical modules in OSFP and QSFP-DD packaging formats. The specific models and parameters are as follows:

400G Optical Modules

Model Name
Max Transmission Distance
Connector Type
Fiber Type
Power Consumption
QSFP-DD-SR8
70m@OM3/100m@OM4
MTP/MPO-16 (APC)
Multimode
≤10W
QSFP-DD-DR4
500m
MTP/MPO-12 (APC)
Single-mode
≤10W
QSFP-DD-ER4
40km
MTP/MPO-12
Single-mode
≤12W
QSFP-DD-FR4
2km
LC Duplex
Single-mode
≤12W
QSFP-DD-LR4
10km
LC Duplex
Single-mode
≤12W
QSFP-DD-DR8
500m
MTP/MPO-12
Single-mode
≤10W
QSFP-DD-DR8
10km
LC Duplex
Single-mode
≤14W
OSFP-SR4
50m
LC Duplex
Single-mode
≤14W

400G DAC/AOC High-Speed Cables

Product Type
Max Transmission Distance
Connector Type
Power Consumption
400G QSFP-DD DAC/AOC Direct Attach Cable
100m
QSFP-DD
≤11W
400G DAC/AOC Breakout Cable
50m
QSFP-DD – 2x QSFP56, QSFP-DD – 4x QSFP56, QSFP-DD – 4x QSFP28, QSFP-DD – 8x SFP56
≤11W

Q: What are the advantages of using 400G?

A:

  • Greater transmission density per RU: From single port rates of 100G to 400G, the transmission bandwidth per RU increases from 3.2-3.6T to 12.8-14.4T/RU.
  • Higher server connectivity density: Supports connections like 400G to 4x100G.
  • Reduced wiring complexity: For the same bandwidth, wiring is only a quarter of what it would be for 100G.
  • Lower power consumption: A 400G module consolidates four 100G modules, reducing operational costs.

Q: Can a 400G link have QSFP-DD on one end and OSFP on the other?

A: Yes. OSFP and QSFP-DD are just physical form factors of the modules. As long as the module type is the same (such as both being 400G-DR4 or 400G-FR4), OSFP and QSFP-DD can interoperate.

Q: Can modules packaged in QSFP format be used in QSFP-DD ports?

A: Yes. Modules packaged in QSFP format can directly be used in QSFP-DD ports; however, attention should be paid to configuring the port speed when using them.

Q: What is the maximum transmission distance of 400G modules?

A: The Walsun 400G module has a maximum transmission distance of 40km.

Q: What is the maximum power consumption of 400G modules?

A: The maximum power consumption of the Walsun 400G module is approximately 14W, though there are also low-power modules available with consumption around 12W.
